Biostar TP67XE Intel P67-Express Sandy Bridge Motherboard Previewed
The Biostar TP67XE is based on Intel's P67-Express Sandy Bridge chipset and supports their socket LGA1155 Intel Core processor series. Dual-channel DDR3 is supported up to 1866MHz (2600MHz when overclocked). Biostar's TP67XE offers SuperSpeed USB 3.0 support via NEC's NEC-D720200F1 chip, and SATA 6Gb/s storage bandwidth.
The Biostar TP67XE includes a single PCI-Express 2.0 x16 graphics port, a PCI-Express x8 port, two single-lane PCI-Express x1 ports, and two legacy PCI slots. The Realtek ALC889 CODEC provides 7.1-channel HD audio, while IEEE-1324 FireWire and Gigabit Ethernet are also standard on the Biostar TP67XE.

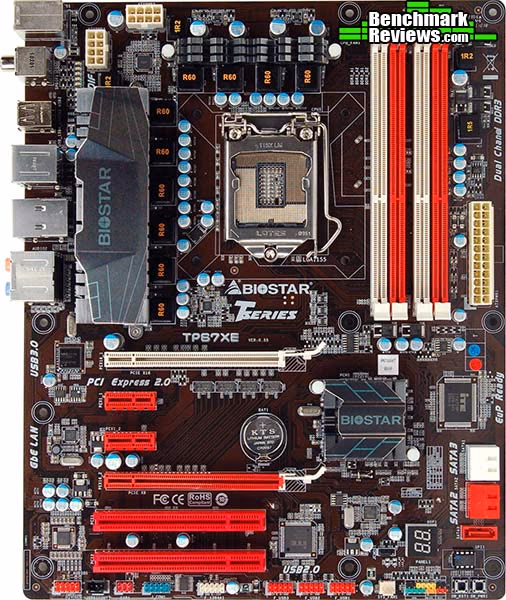

Biostar TP67XE Intel P67-Express Motherboard
Biostar TP67XE Features
- Supports LGA1155 , ATX
- Supports Intel Sandybridge processors
- Intel P67 Chipset
- 10 Phases Power design
- Support Dual channel DDR3-2600(OC),1866/1600/1333Mhz
- 4 X DDR3 DIMM Memory slots, Max up to 16Gb Memory
- 100% X.D.X. Japanese solid capacitor
- 8+2 channel HD Blu-ray Audio
- USB 3.0 / SATA3 6Gbps support
- Bio-tex Technology
- Biostar Toverclocker utility
- IEE 1394a/ eSATA2
- Gbe LAN
- Biostar G.P.U (Green Power Utility) Technology
Reader comments from the original article
3 comments were posted before commenting closed. They are preserved as written. Original avatars no longer resolve and are shown as a placeholder.
geek glenm Permalink:
"The Biostar TP67XE is based on Intel's P67-Express Sandy Bridge chipset and supports their socket LGA1156" did you mean to say 1156, or 1155?
RE: geek Olin Coles Permalink:
Fixed the typo... I've really needed more sleep this week.
Southbridge v.3.0 Stan Permalink:
Seems the fashion to have v.3.0 and beleave in the NVIDIA/AMD "need the x16 PCIe v.2.0 for graphics" bluff takes over the common sense. Southbridge USB/SATA 3.0 are useless (even if provided by x4 to two x1 switch). Switching the x16 link will be much more useful and effective. Take a note that in HPC products NVIDIA powers 4 GPGPUs from a single x16 link!!!
