Biostar TH67XE Intel H67-Express Motherboard Previewed
Biostar TH67XE Intel H67-Express Sandy Bridge Motherboard Previewed
The Biostar TH67XE is based on Intel's H67-Express Sandy Bridge chipset and supports their IGP platform (integrated graphics processor) using socket LGA1155 Intel Core processors. Dual-channel DDR3 is supported, HDMI, DisplayPort, digital DVI, and analog D-Sub ports are available for connecting a monitor or HDTV. Biostar's TH67XE offers SuperSpeed USB 3.0 support and SATA 6Gb/s storage bandwidth.
The Biostar TH67XE includes a PCI-Express 2.0 x16 graphics port, one PCI-Express x16 port, a single-lane PCI-Express x1 port, and a legacy PCI slot. The Realtek ALC889 CODEC provides 7.1-channel HD audio, while IEEE-1324 FireWire and Gigabit Ethernet are also standard on the Biostar TH67XE.

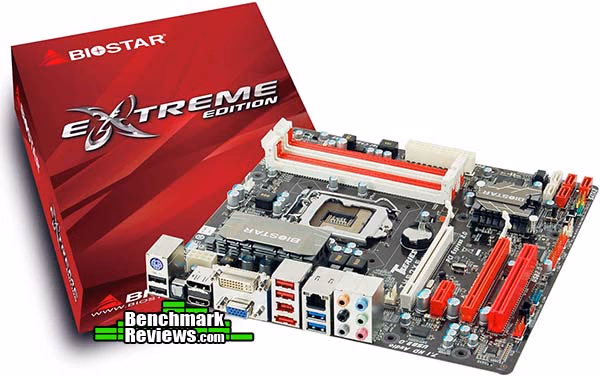

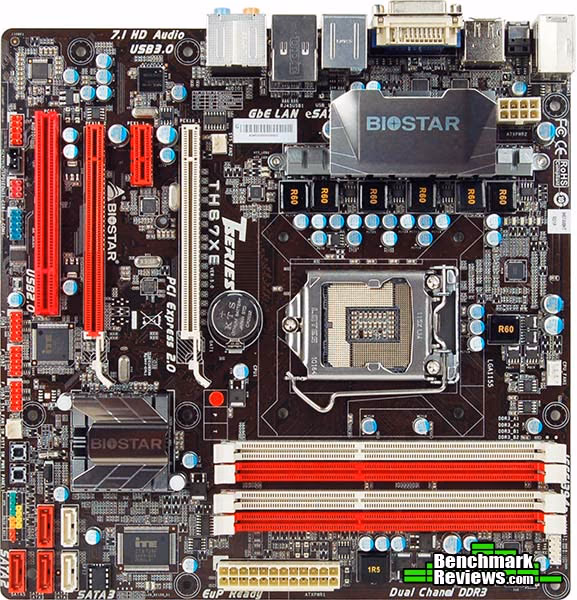

Biostar TH67XE Intel H67-Express Motherboard
Biostar TH67XE Features
-
Supports LGA1155 , µATX
-
Supports Intel Sandybridge processors
-
Intel H67 Chipset
-
7 Phases Power design
-
Onboard Graphic D-SUB port , DVI-D, HDMI and Display Port
-
Support Dual channel DDR3-2000(OC),1866/1600/1333Mhz
-
4 X DDR3 DIMM Memory slots, Max up to 16Gb Memory
-
100% X.D.X. Japanese solid capacitor
-
8+2 channel HD Blu-ray Audio
-
USB 3.0 / SATA3 6Gbps support
-
Bio-tex Technology
-
Biostar Toverclocker utility
-
IEE 1394a/ eSATA2
-
Gbe LAN
-
Biostar G.P.U (Green Power Utility) Technology
Reader comments from the original article
6 comments were posted before commenting closed. They are preserved as written. Original avatars no longer resolve and are shown as a placeholder.
geek glenm Permalink:
those are pictures of two different motherboards... was the article talking about two different boards? the visual differences are obvious, but were there supposed to be two previews? i can also see "usb3" printed on both boards, so that is cool. mainly, what is model # of the second motherboard?
RE: geek Olin Coles Permalink:
I've fixed the image - sorry for the confusion. The other motherboard (Biostar TP67XE) is here: /index.php?option=com_content&task=view&id=12048&Itemid=22
geeker glenm Permalink:
hehe, the second pic still shows a different model...
RE: geeker Olin Coles Permalink:
It looks proper on my end. Clear browser cache or refresh page with CTRL+F5.
geekazoid glenm Permalink:
looks great! thanks! btw, there were supposed to be a few other chip makers that were coming out with usb3 controllers. i was hearing pronouncements back in january 2010 that more companies were going to produce usb 3.0 for motherboards, not just NEC. yet all i see is NEC. Is there really any competition for NEC yet?
NEC USB 3.0 Olin Coles Permalink:
So far, I haven't heard of another retail-ready SuperSpeed USB-3.0 controller. We'll wait and see what's used on Intel's own H/P67 motherboards.
