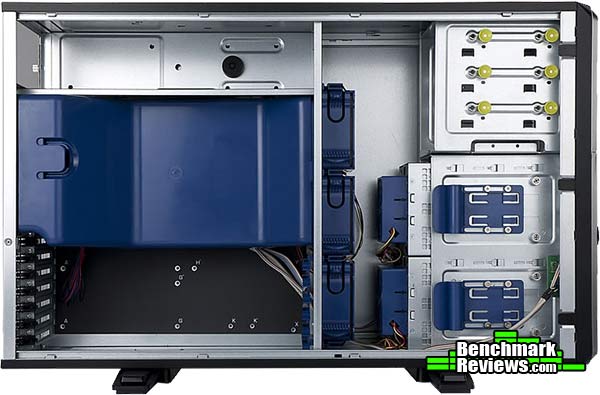

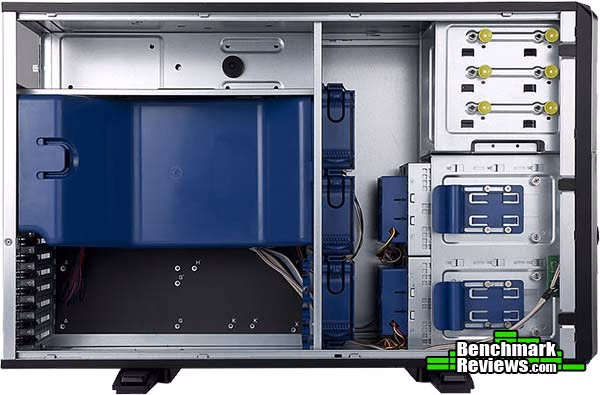

In Win IW-PP689 Pedestal Server Tower is Born

Reflecting on the current demand for reliable pedestal server towers, In Win is introducing New Generation of Pedestal Server Chassis to complement its existing line of rackmount server chassis and to successfully fulfill the needs of today's server chassis builder.

Supported by 25 years of experience in the PC chassis manufacturing, In Win stays nothing short of its quality and reliability when it comes down to any of its innovative products and the new line of pedestal server chassis continues this legacy as well.
Available in three models: Entry Level IW-PE689, Value Added IW-PV689 and High Performance IW-PP689 In Win offers the choices that can be tailored to needs of any server chassis builder.

Low-cost, high-quality and amazing spectrum of features are attributes of the Entry Level chassis IW-PE689 with following features:
- 5 vibration/shock free HDD holder for internal drives
- 4 5.25" bays with optional storage kit converting it to 4 hot swappable external drives
- Tool-free cages and innovative tool free I/O 7 slots

Model Name	IW-PP689
M/B Form Factor	ATX (12" x 9.6"), CEB (12" x 10.5"), EEB (12" x 13")
Dimension (D x W x H) w/o Front Panel	675 x 210 x 430 (mm)
Drive Bays	External: 5.25" x 3, 3.5" x 1 Internal: 3.5" x 8
Power Supply	PS/2 EPS12V, N+1 Redundant ERP12V
Front Control Panel	Power ON/OFF, System Reset, USB2.0x2
Cooling Fan	Middle: 3 x 92mm PWM Rear: 1 x 120mm PWM (Optional)
Slot Opening	7
Security	Intrusion Switch, Padlock Loop, Kensington Lock Supported
Net Weight (Chassis Only)	17.85 Kg
Gross Weight (w/packing)	23.45 Kg
Reference Container Info	20': 140, 40': 280 (Single Packing) 20': 96, 40': 208 (Bulk Packing + Pallet)

The Entry Level IW -PE689 chassis accomplished to be the winner for its price and will be available starting November 2010 through In Win's distributors.
